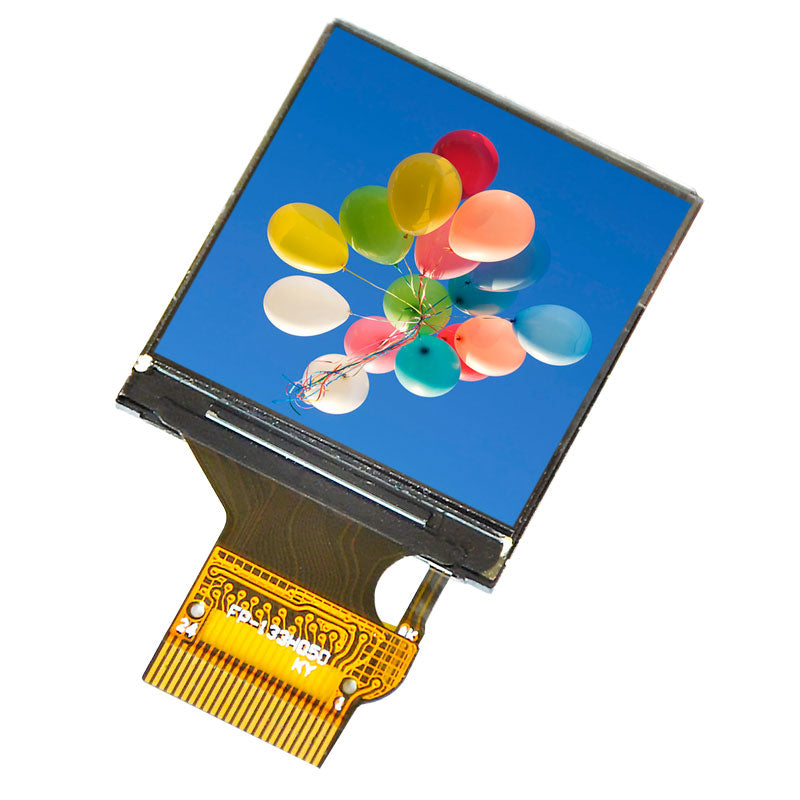

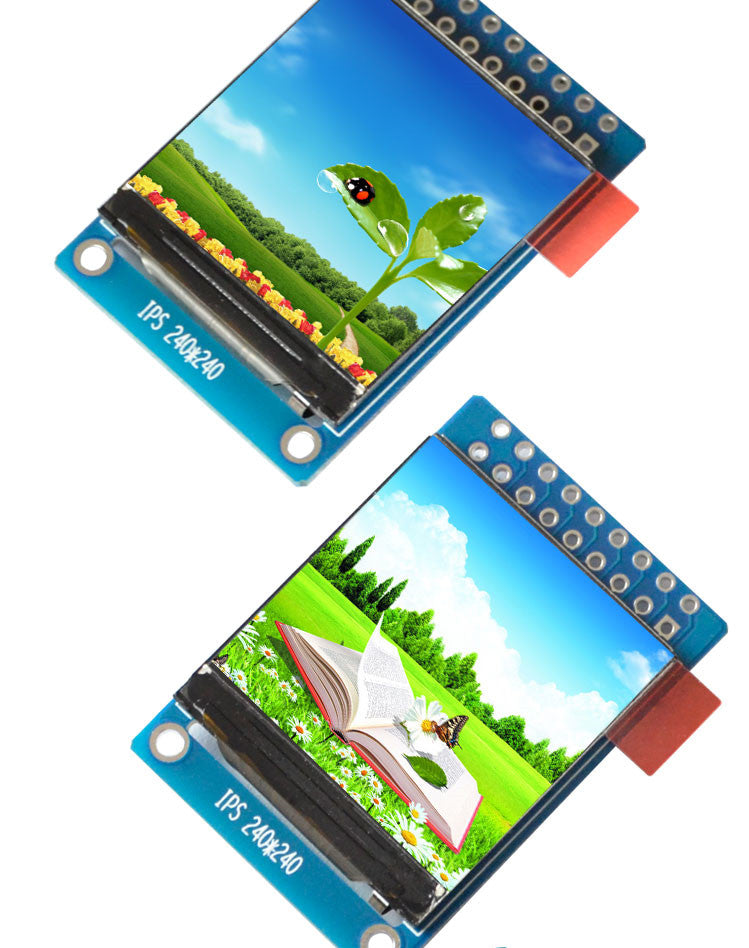

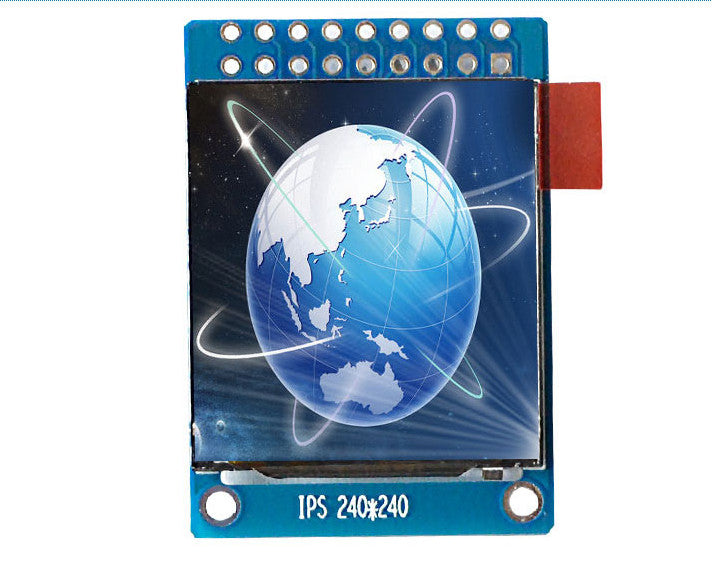

1.3 Inch 240X240 IPS LCD Full Color Display Plug-in
1.3 in
$37.85
Skip to product information
1.3 Inch 240X240 IPS LCD Full Color Display Plug-in
$37.85

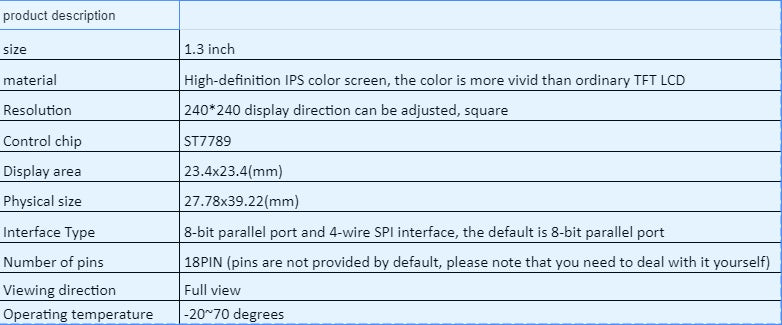

Specification:
| size | 1.3 inch |
| material | High-definition IPS color screen, the color is more vivid than ordinary TFT LCD |
| Resolution | 240*240 display direction can be adjusted, square |
| Control chip | ST7789 |
| Display area | 23.4x23.4(mm) |

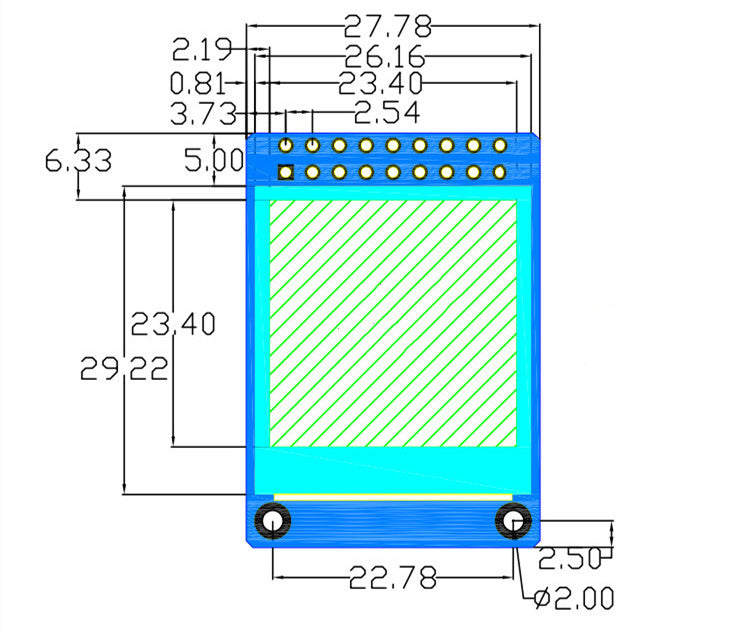

| Physical size | 27.78x39.22(mm) |
| Interface Type | 8-bit parallel port and 4-wire SPI interface, the default is 8-bit parallel port |
| Number of pins | 18PIN (pins are not provided by default, please note that you need to deal with it yourself) |
| Viewing direction | Full view |
| Operating temperature | -20~70 degrees |
Packing list :
Display*1
